Novotechnik SP 4001 101 003 003

Special features
* highly robust potentiometer
for demanding applications
* Long lifetime - to 4 million
movements
* easy mounting
* protection class up to IP6k9k
(when mounted with O-ring),
IP40 shaft side
* return spring in cw direction
* good price/performance ratio
.
Angle Sensor
Potentiometer
Series SP4000
Page 1

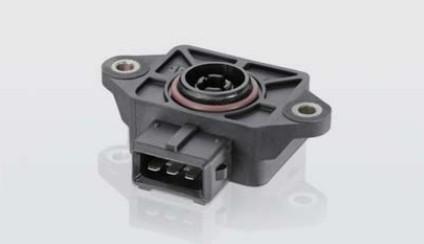

The SP4000 potentiometer
converts angular position into
a proportional analog voltage.
It utilizes Novotechnik‘s highly
robust conductive plastic
technology.
The use of a precious metal
multifinger wiper ensures reliable
contact even under most
severe working conditions.
The housing is made of special
high-grade temperatureresistant
plastic. Two mounting
holes with brass insert allow
easy mounting.
The design makes use of the
customer-side bearing on the
driving shaft. This allows for
fast and easy mounting.
The SP4000 is sealed to
IP6k9k, making it insensitive to
dirt and moisture. It is suitable
for use in difficult environments,
such as automotive underhood
applications.
The 3-pin Delphi Metri-Pack
connector offers a popular
and reliable plug connection.
Special models with different
electrical angles and contact
versions are available upon
request.
